Facilities

Combined Facility Advantages

  • Total Capacity: 104,000 m² area, 30,000 DWT, 625 m quay length
  • Comprehensive Services: New builds, repair & maintenance, floating repair, outfitting, lifting & handling, fabrication, surface treatment, painting
  • Strategic Benefits: Dual-unit operation, scalable capacity, complete in-house capabilities, waterfront access

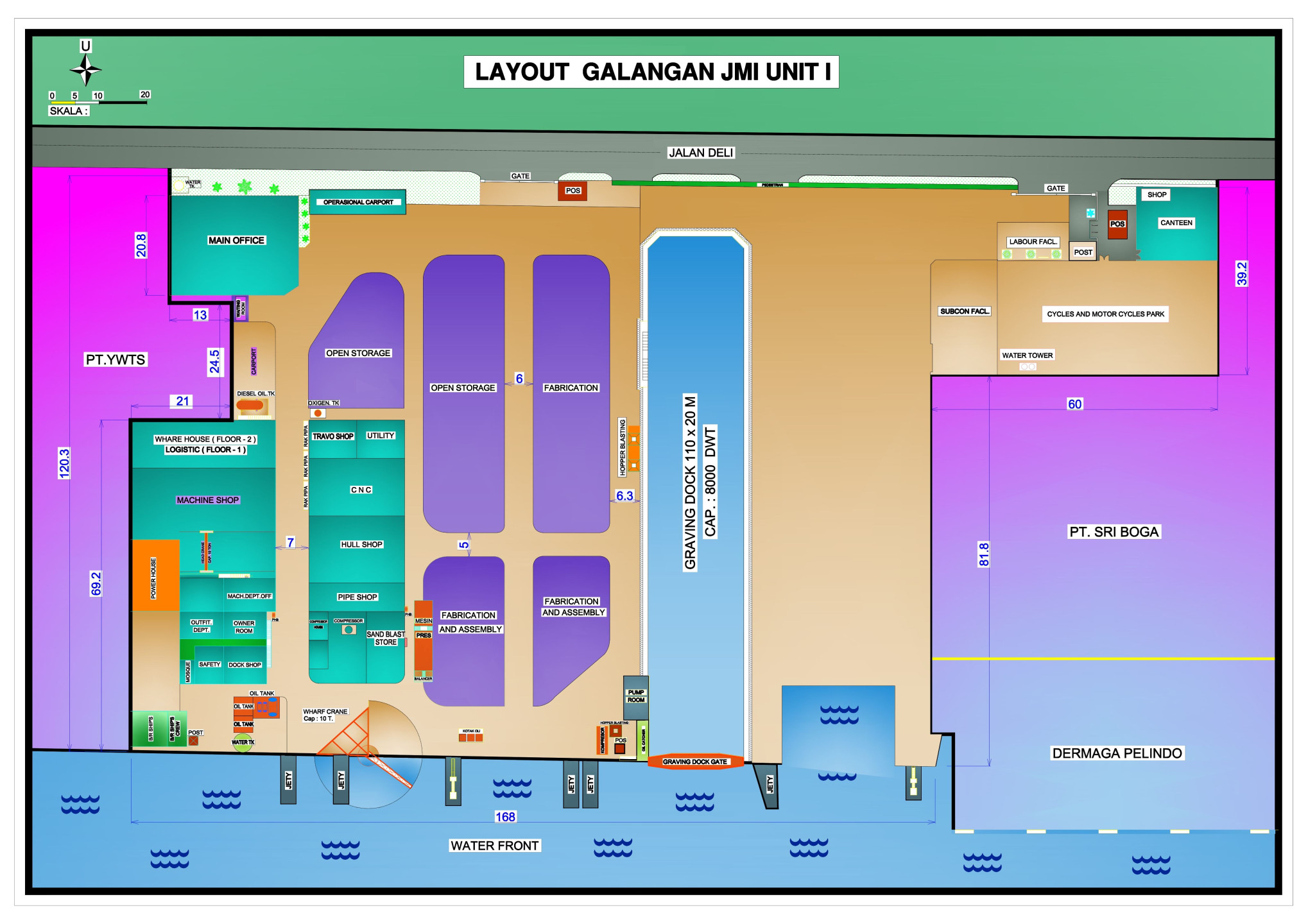

Unit Map / Blueprint

LAYOUT JMI 1_opt_001

Click to view fullscreen

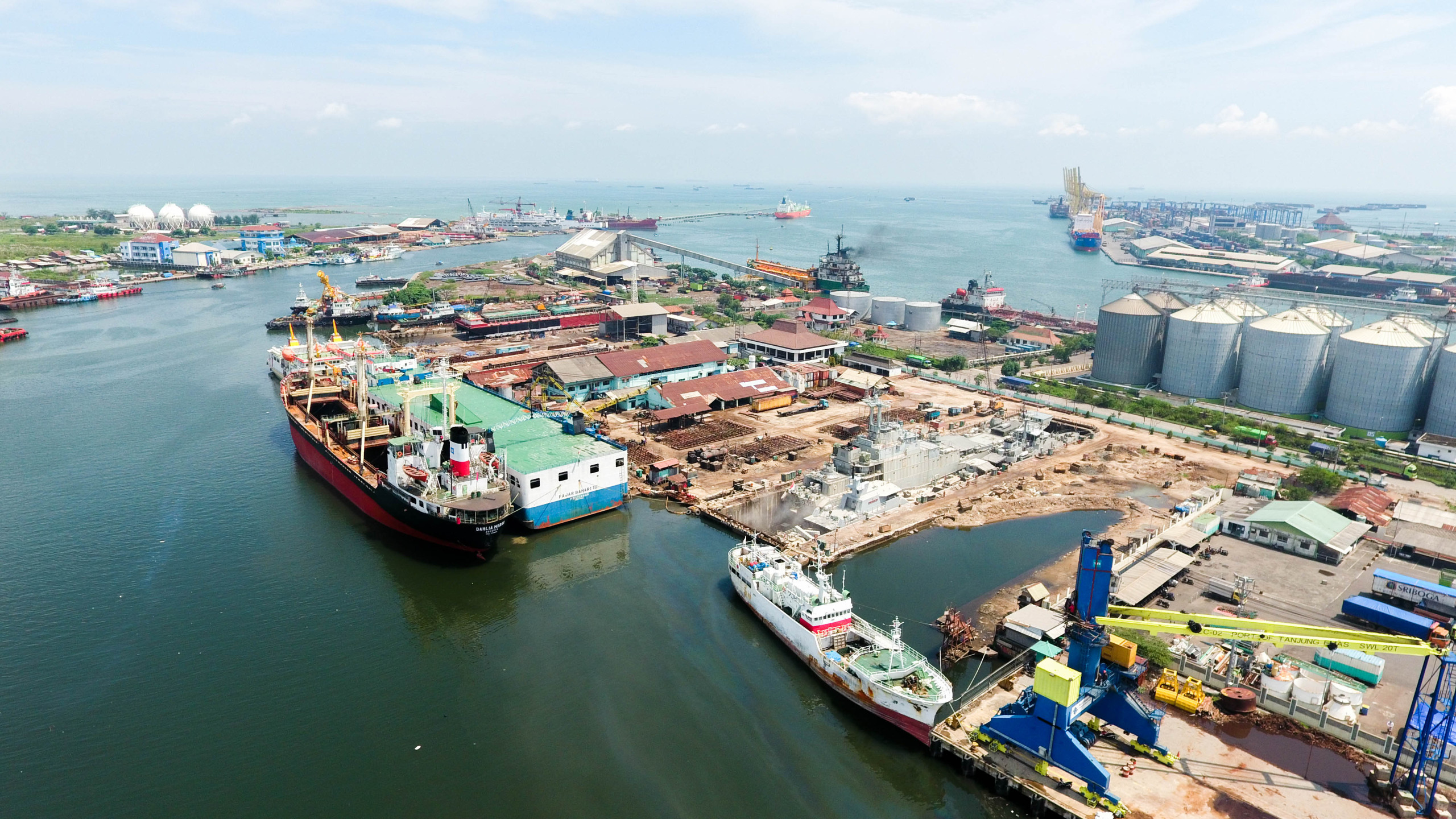

Unit I

Comprehensive waterfront facility with integrated shipbuilding and repair capabilities.

Area
23,000 m²
Quay Length
160 m
Max DWT
8,000 DWT
Cranes
4+

Graving Dock

8,000 DWT (110m × 20m × 4m)

Building Berth

7,000 DWT (114m × 21m)

Fabrication Equipment

1× Bending Machine, 1× Hydraulic Crimping Tools, 150× Hand Grinders

Surface Treatment

1× Compressor Sandblast, 4× Blasting Equipment

Ready to discuss a project at Unit I?
Get in Touch

General Specifications

  • Total Area: 23,000 m²
  • Water Quay Length: 160 m
  • Location: Waterfront access with comprehensive marine facilities

Dry Dock & Building Facilities

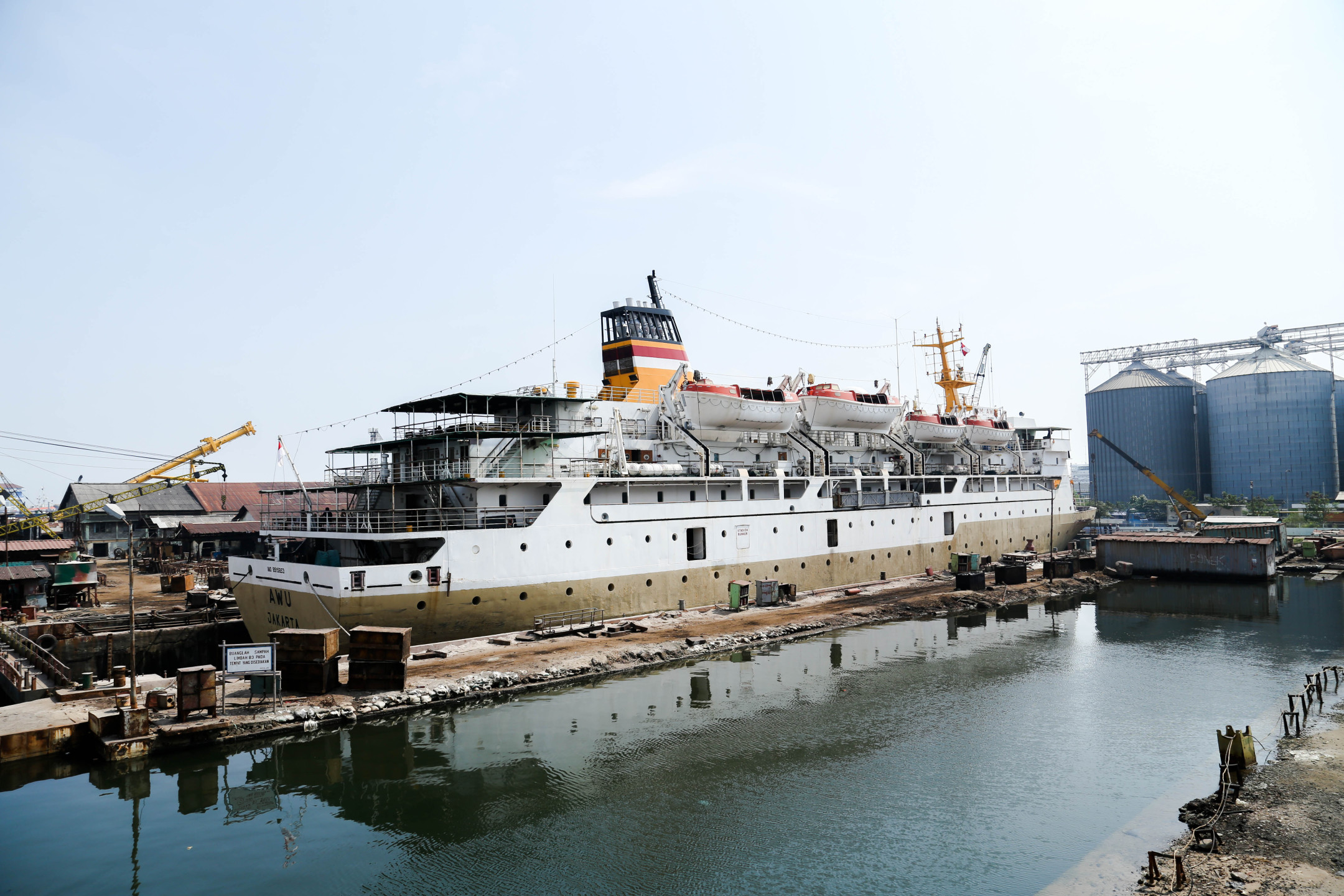

  • Graving Dock: 8,000 DWT (Dimensions: 110m × 20m × 4m)
  • Building Berth: 7,000 DWT (Dimensions: 114m × 21m)

Workshop Facilities

Workshop Area
Plate Shop800 m²
Welding Shop800 m²
Pipe Shop400 m²
Machinery Shop600 m²
Carpenter Shop300 m²
Electrical Shop50 m²
Mould Loft600 m²
Engineering50 m²
Warehouse300 m²

Heavy Equipment & Machinery

Cranes

  • 1× Wharf Crane
  • 1× Gantry Crane
  • 2× Head Cranes
  • 1× Mobile Crane

Material Handling

  • 1× Forklift
  • 1× Trailer
  • 1× Pick Up

Fabrication Equipment

  • 1× Bending Machine
  • 1× Hydraulic Crimping Tools
  • 150× Hand Grinders
  • 2× Scraping Machines
  • 18× Hydraulic Jacks

Specialized Equipment

Pipe Work

  • 1× Pipe Bending
  • 1× Pipe Cutting

Surface Treatment

  • 1× Compressor Sandblast
  • 4× Blasting Equipment

Painting

  • 2× Painting Machines

Marine Equipment

  • 2× Water Jet Equipment
  • 6× Ashore Pumps

Power Systems

  • 1× Government Electric Supply
  • 1× Genset
